TOWA ACT-1

Product Description
Smart 'Air Contact Terminal' for "Easy Development" and "Quick and Easy setting".

CPU Arm11 600 MHz
Supported Operating System
Windows CE 6.0, Linux , Android 2.3 (Future use)

Memory
512 MB RAM

Storage
512 MB Flash memory

External Storage
Micro SD Card (Supported up to 32 GB)

Display
Operator: 10.1 inch WGA 1280 x 800 Color TFT LCD
Customer: 20 character x 2 line (32 x 240 dots) LCD

Printer
1 station 58mm Thermal line printer with easy loading

Printing speed
Approx. 80 mm/s

Touch Function
Capacitive Touch Screen

Power
DC 13.8V / 2.5A

Dimensions
Body : 320(W) x 306(D) x 106(H) mm
Drawer(N26): 410 (W) x 415 (D) x 114 (H) mm

Weight
Body : 1.3 Kgs

OPTIONS

MSR
Magnetic Stripe Card Reader track 1/2/3

RFID
13.56 MHz Mifare (Type A/B)

WiFi
Integrated 802.11 a/g wireless LAN module

Server Key
i-Button

GPRS
Quad band module

Smart Card Reader
Contact IC Card Reader

UPS (Uninterruptible power supply system)
11.1V / 3000 mAh

External Display
Customer Display (connection by USB interface)

VESA Stand
Supporting VESA MIS-D (100 x 100mm)

Magnetic Plate
Magnetic plate (46 x 76 mm)

Cash Drawer
N26 Drawer with media slot (410 x 415 x 114 mm)
T33 Drawer (350 x 405 x 104 mm)

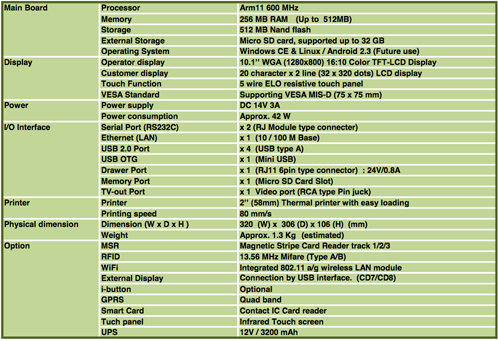

Specifications
